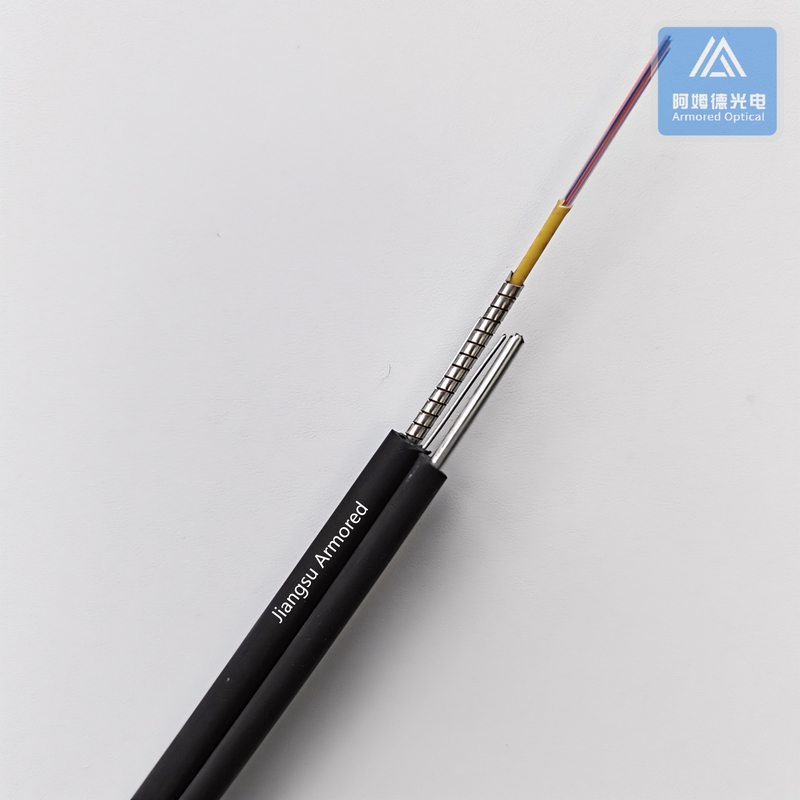

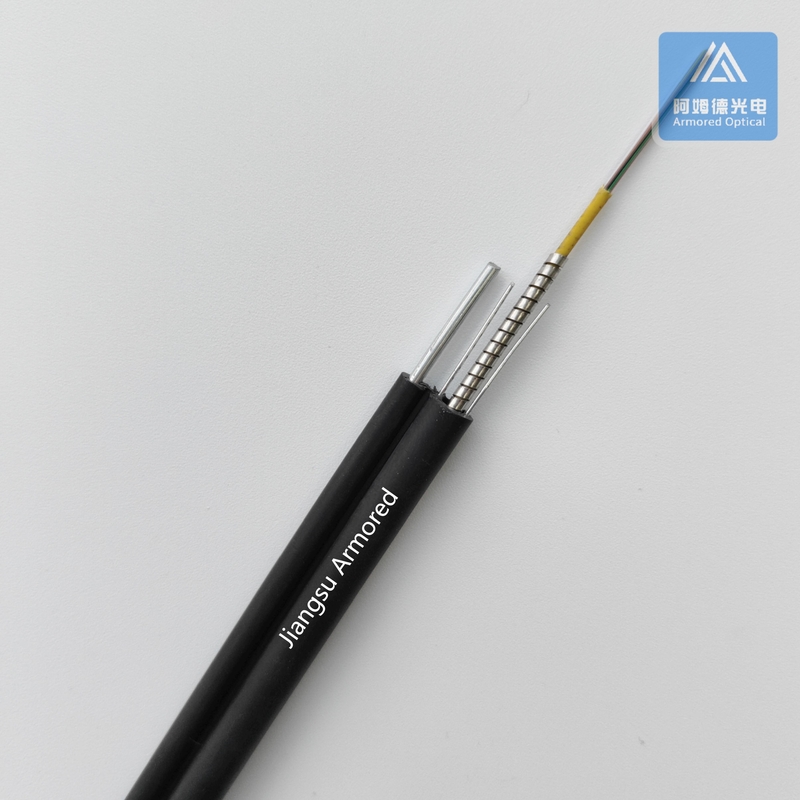

G657A 10.0x6.0mm 12 Core Armored Fiber Optic Cable

G657A 10.0x6.0mm 12 Core Armored Fiber Optic Cable

  • Highlight

    G657A Armored Fiber Optic Cable

    ,

    10.0x6.0mm Armored Fiber Optic Cable

    ,

    12 Core Armored Fiber Optic Cable

  • Name
    Armored Fiber Cable
  • Fiber Mode
    G657A
  • Supporting Part
    Steel Wire
  • Steel Wire Size
    0.6mm(2pcs)+1.7mm 1pcs
  • Armored Tube Material
    Stainless Steel
  • Cable Diameter
    10.0x6.0mm
  • Outer Jacket
    LSZH
  • Color
    Black
  • Flame Rating
    IEC60332-1-2
  • Feature
    Rodent Resistant, Flexible
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    12F-B6a2-10.0x6.0mm-LSZH-Black
  • Minimum Order Quantity
    1000M
  • Price
    Negociation
  • Packaging Details
    1000m Per Drum, With or Without Carton, By Sea or Air
  • Delivery Time
    2-3 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    20km Per Day

G657A 10.0x6.0mm 12 Core Armored Fiber Optic Cable

12 Cores Single Mode Self-supporting Stainless Steel Armored Fiber Optic Cable 10.0x6.0mm Black LSZH

Spiral Armored Fiber Cable, Micro Armored Cable, FTTH, Rodent Resistant​,

Micro Armored Fiber Cable, Ruggedized Fiber Cable, FTTX,Flexible Armoured Fiber Cable



With stainless steel tube, armored fiber cables are resistant to physical damage, like crush, bending, and rodent animals bites.

Especially the armored fiber cable are applied for environment where cables are exposed to outdoor, This advantage is particularly obvious



Because with metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Item

Parameter

Fiber Count

12  Cores

Supporting Part

0.6mm(2pcs) & 1.7mm 1pcs

Armored Tube

OD 2.1 ±0.1mm, Stainless Steel

Cable diameter

10.0 x 6.0 mm

Cable jacket

Black LSZH

Temperature

-40℃~80℃

Crush (N/10cm)

Long-term 1000, short-term 2000

Application

FTTH,



G657A 10.0x6.0mm 12 Core Armored Fiber Optic Cable 0



Feature

  • Cable using spiral stainless steel armored tube with best crush property, and cable is very flexible and easy bend.
  • Spiral armored fiber cable has greater durability in resisting pulls, strains and impacts from cabling installation.
  • Different jacket material and colors fit for different environments.
  • It's designed for harsh environments where regular fiber optical cables couldn't work well.



Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical
  • Used in communications in data center



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
