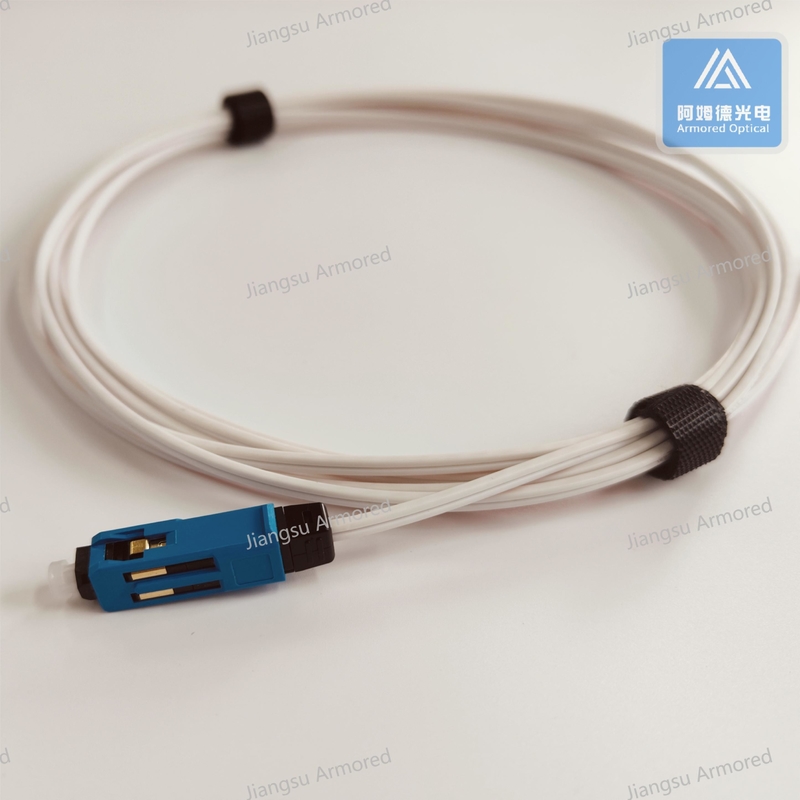

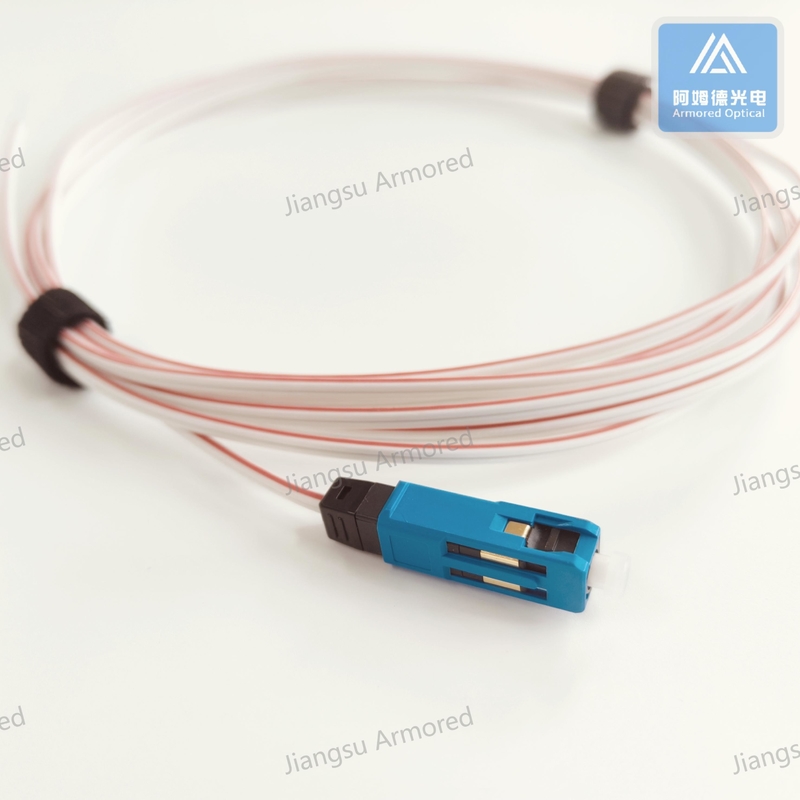

1pc G657B3 And 2pcs 0.31mm² Hybrid Patch Cable Patch Lead 3.0*2.0mm Drop Cable
-
Highlight
1pc G657B3 Hybrid Patch Cable
,3.0*2.0mm Hybrid Patch Cable
,Drop Hybrid Patch Cable
-
NameHybrid Cable Patch Cord
-
Fiber ModeSingle Mode
-
Power Cable0.31mm²
-
Diameter3.0*2.0mm
-
ColorWhite
-
JacketLSZH
-
Cable Length2M
-
ApplicationFTTX
-
Place of OriginCHINA
-
Brand NameJIANGSU ARMORED
-
CertificationROHS
-
Model Number1*G657B3 +2*0.31mm² 3.0*2.0mm
-
Minimum Order Quantity3000m Cable
-
PriceTo Be Advised
-
Packaging DetailsPlastic bags , Carton, and Pallet. By Sea or Air shipment
-
Delivery Time1 Working Weeks
-
Supply Ability70km Per Day
1pc G657B3 And 2pcs 0.31mm² Hybrid Patch Cable Patch Lead 3.0*2.0mm Drop Cable
Optical-Electrical Hybrid Cable 1pc G657B3 and 2pcs 0.31mm² Hybrid Patch Cable Patch Lead 3.0*2.0mm Drop Cable
Hybrid Cable Assembly, Hybrid Patch Cord, Hybrid Assembly Cable
Optical-Electrical Hybrid Cable is a composite cable that contains both optical fiber and power cable, and is widely used in applications where optical and electrical signals need to be transmitted together. Hybrid Cable combines the high-speed data transmission capability of optical fiber and the power transmission function of cable, and is suitable for communication, data center, broadcasting and industrial automation.
Optical-Electrical Hybrid Cable Parameter
| Fiber | 1PC G657B3 |
| Fiber Attenuation | ≤0.3dB/km@1550nm , ≤0.4dB/km@1310nm |
| Power Cable Diameter | 0.31mm² |
| Power Cable Quantity | 2 pcs |
| Cable Diameter | 3.0*2.0mm |
| Outer Jacket | White LSZH |
| Bending Radius | Static 10D, Dynamic 20D |
| Temperature | Working temperature: -20℃～+60℃； Installation temperature: :-5℃～+50℃； Storage temperature: :-20℃～+75℃ |
| Crush (Max.) | 100N/10cm |
