Simplex Flexible Armored Fiber Patch Cable 3.0mm White LSZH FTTH
-
Highlight
3.0mm Flexible Armored Fiber Patch Cable
,Simplex Flexible Armored Fiber Patch Cable
,White Flexible Armored Fiber Patch Cable
-
NameSpiral Armored Fiber Cable
-
Fbier Count1 Fiber
-
Fiber ModeSingle Mode
-
Armored Tube MaterialStainless Steel
-
Braiding Mesh MaterialStainless Steel
-
Aramid Yarn1000D
-
Cable Diameter3.0mm
-
Outer Jacket ColorWhite
-
Outer JacketLSZH
-
ApplicationFTTH, Datacenter
-
FeatureRodent Resistant
-
Flame RatingIEC60332-1-2
-
Place of OriginCHINA
-
Brand NameJIANGSU ARMORED
-
CertificationROHS
-
Model Number1F-B1.3-LSZH-3.0-White
-
Minimum Order Quantity1000M
-
PriceNegociation
-
Packaging DetailsPlywood Drum and Pallet. By Sea or Air shipment
-
Delivery Time2 Working Weeks
-
Payment TermsT/T
-
Supply Ability50 km Per Day
Simplex Flexible Armored Fiber Patch Cable 3.0mm White LSZH FTTH

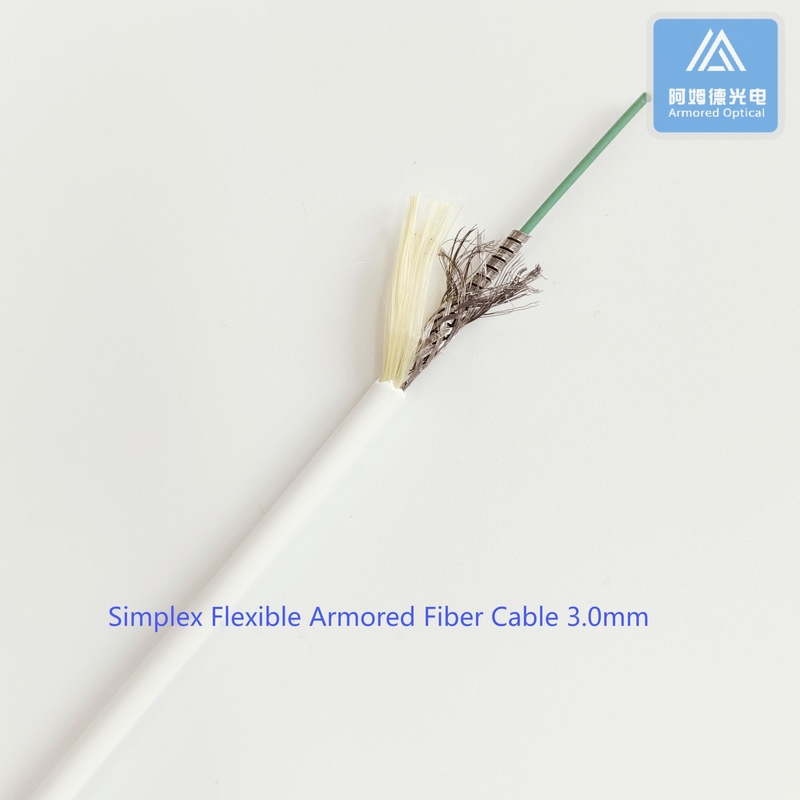

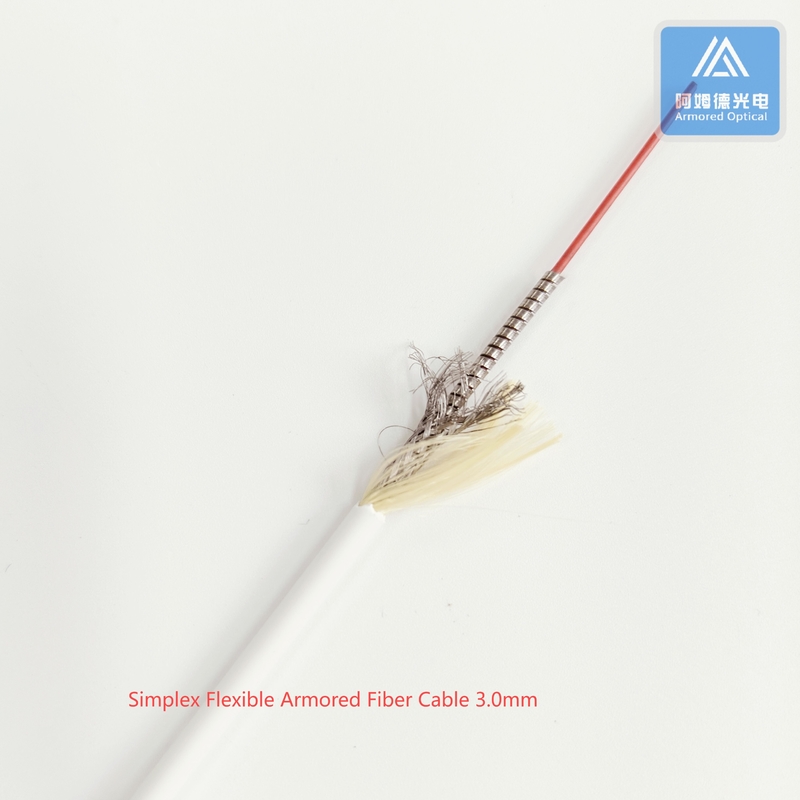

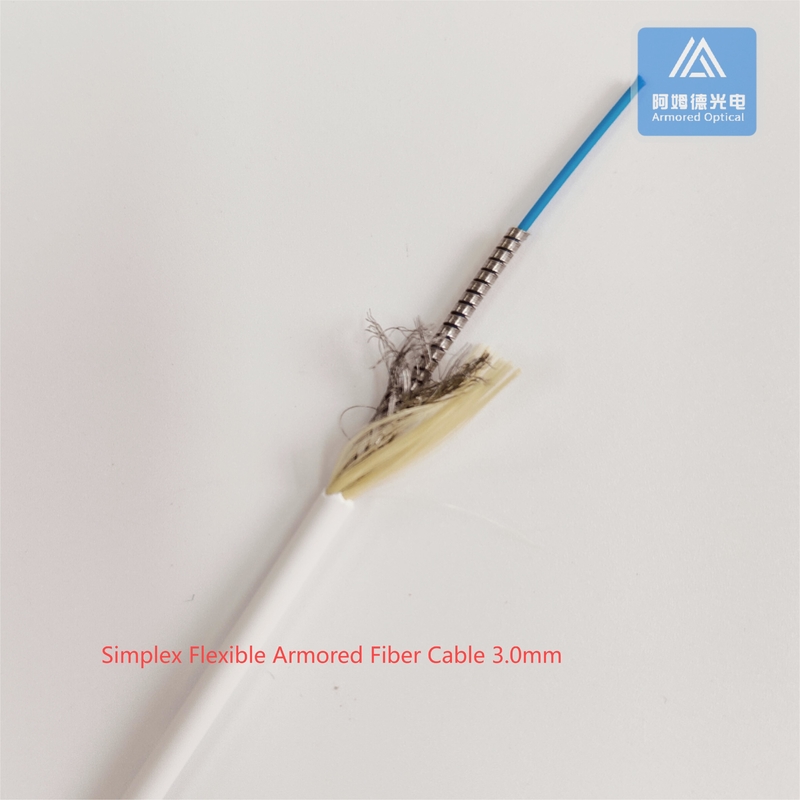

Simplex 3.0mm Spiral Stainless Steel Micro Armored Fiber Cable, White LSZH Jacket FTTH Rodent Resistant
Micro Armored Fiber PatchCable, Spiral Armored Fiber Cable Assembly, Double Armored Fiber Optical Cable,
With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.
Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.
| Item | Unit | Description | Remark |
| Tight Buffer Fiber | mm | 0.6 or 0.9±0.05mm | PVC, LSZH,Others |
| Spiral Armored Tube | mm | OD: 1.7±0.1mm | Stainless Steel |
| Braiding Mesh | mm | OD: 2.0±0.1mm | Stainless Steel |
| Attenuation (Max.) | dB/km |
SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm MM: 3.5dB/km@850nm, 1.5dB/km@1300nm |
|
| Outer Jacket OD | mm | 3.0±0.1 | PVC/ LSZH/ PU |
| Temperature | ℃ |
PVC: -20～70℃ PU: -40～90℃ LSZH: -30～80℃ |
|
| Tensile | N | Long-term 100, short-term 200 | |
| Crush | N/10cm | Long-term 1000, short-term 2000 | |
Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC),
making them adaptable to different networking and communications equipment.
Advantage
- The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
- Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
- The spiral armoured cable with good tension and pressure performance.
- The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
- Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
Our products are sold all over the world, you can rest assured.
