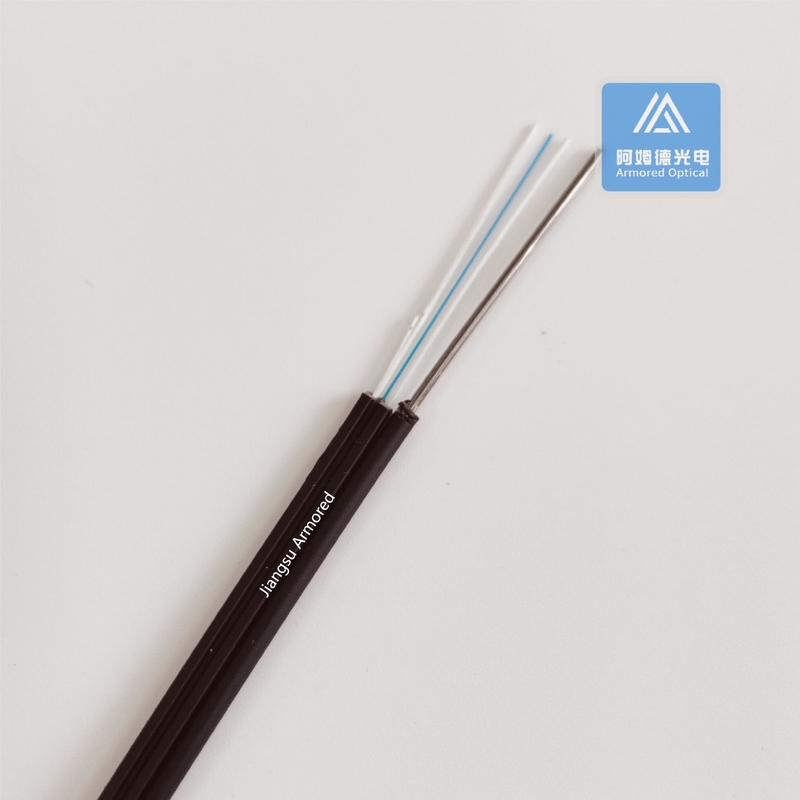

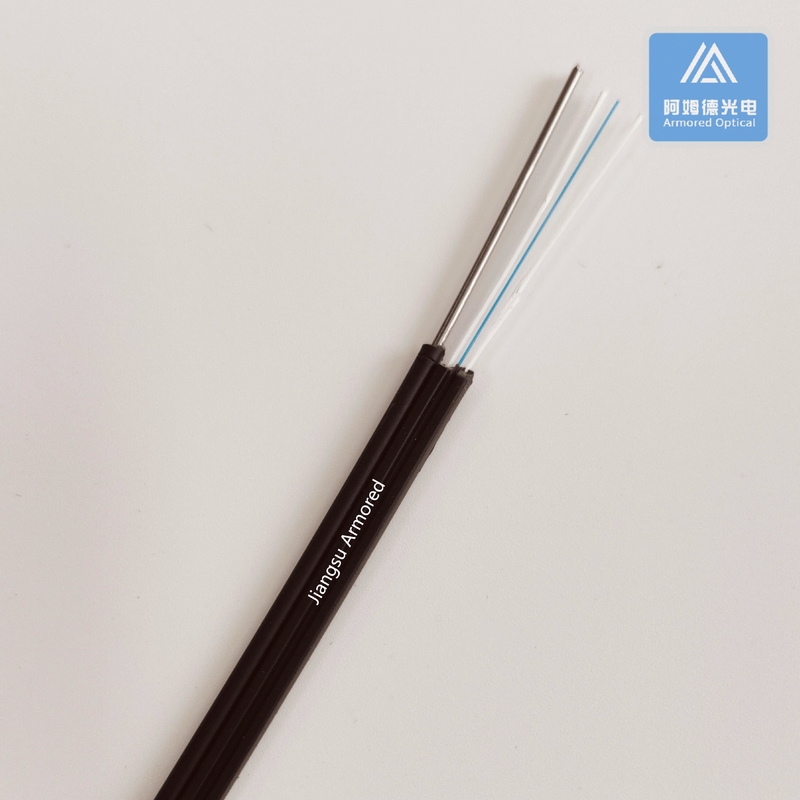

Simplex SM Drop Cable 5.0x2.0mm Black LSZH Indoor Fiber Optic Cable FTTH
-
Highlight
FTTH Indoor Fiber Optic Cable
,Simplex SM Drop Cable
,Black LSZH Indoor Fiber Optic Cable
-
NameFiber Drop Cable
-
Fiber Counts1 Core
-
Fiber ModeG657A
-
Fiber Diameter0.25mm
-
Fiber ColorBlue
-
FRP OD0.5mm
-
Supporting WireStainless Steel Wire
-
Outer Jacket ColorBlack
-
Outer JacketLSZH
-
Cable OD5.0x2.0mm
-
Place of OriginCHINA
-
Brand NameJIANGSU ARMORED
-
CertificationROHS
-
Model Number1F-B6a2-5.0x2.0-LSZH-Black
-
Minimum Order Quantity10000M
-
PriceNegociation
-
Packaging Details1000m or 2000m per drum, with or without carton
-
Delivery TimeAccording to the quantity
-
Payment TermsT/T
-
Supply Ability80km per day
Simplex SM Drop Cable 5.0x2.0mm Black LSZH Indoor Fiber Optic Cable FTTH
Simplex SM Drop Cable 5.0x2.0mm Black LSZH FTTH Indoor and Outerdoor Fiber Optic Cable
Fiber Patch Cable, Assembly Cable, FTTH,
Parameter
|
Item |
Specification |
|
Fiber Counts |
1 cores |
|
Fiber Diameter |
0.25mm |
|
Cable Jacket |
Black LSZH |
|
Cable Diameter |
5.0x 2.0 (±0.1mm) |
|
Temperature |
-20℃~70℃ |
|
Flame retardant |
IEC60332-1-2 or others |
|
Crush (N/10cm) |
max.500 |
|
Bend radius (mm) |
Dynamic 20D, Static 10D |
Feature
- Cable using high property aramid yarn, increasing tension property, and fit for long distance application.
- Different jacket material fit for different environments.
- UV-resistant
Applications
- Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
- Used in communications in data center, during ODF with armored patch cord and pigtail
- Used in the open field, connections between optical equipment.
- For patch cord or pigtail assembly.
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
