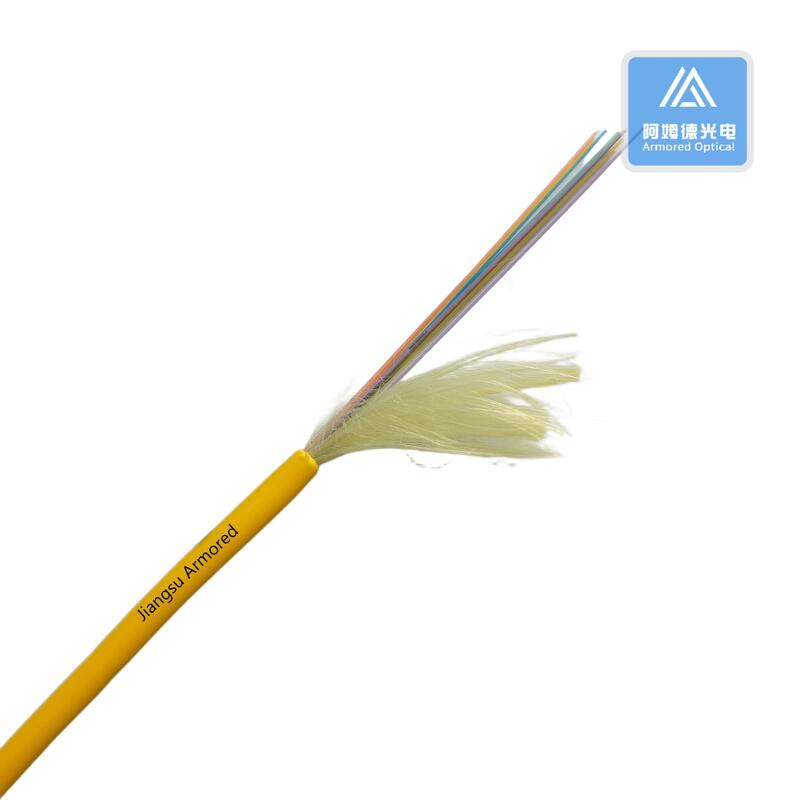

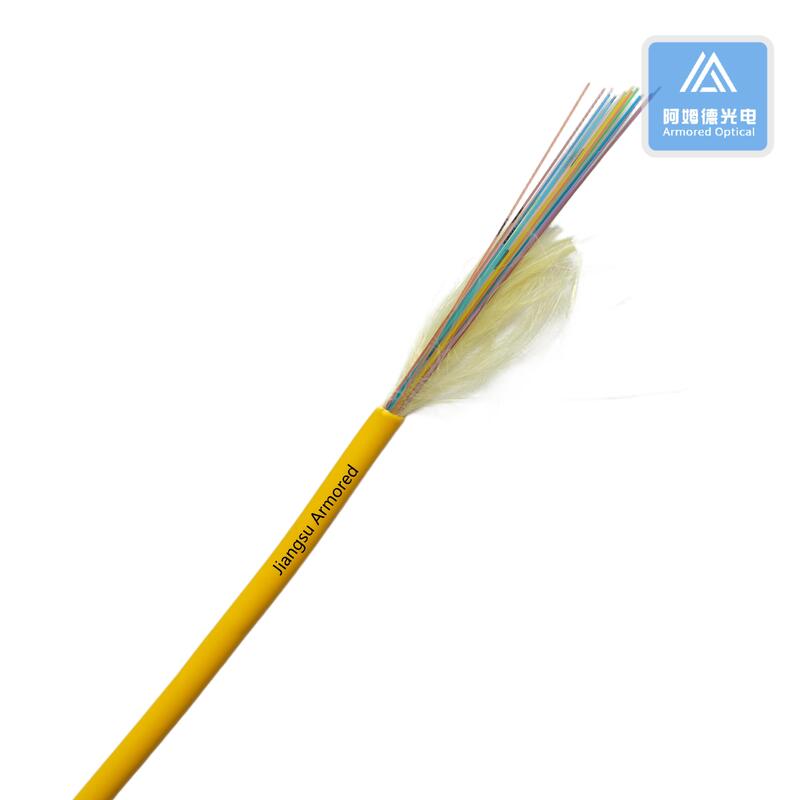

16 Core SM MPO Fiber Optical Cable Indoor Fibre Cable 3.0mm LSZH FTTH

16 Core SM MPO Fiber Optical Cable Indoor Fibre Cable 3.0mm LSZH FTTH

  • Name
    MPO Fiber Optical Cable
  • Fiber Counts
    16 Core
  • Fiber Mode
    G657A
  • Fiber Diameter
    0.25mm
  • Fiber Color
    Blue, Orange, Green, Brown, Grey, White, Etc.
  • Outer Jacket Color
    Yellow
  • Outer Jacket
    LSZH
  • Cable OD
    3.0mm
  • Flame Rating
    IEC60332-1-2
  • Application
    FTTH, FTTB
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS,
  • Model Number
    16F-B6a2-3.0-LSZH-Yellow
  • Minimum Order Quantity
    10000M
  • Price
    Negociation
  • Packaging Details
    1000m or 2000m per drum, with or without carton
  • Delivery Time
    According to the quantity
  • Payment Terms
    T/T
  • Supply Ability
    50km per day

16 Core SM MPO Fiber Optical Cable Indoor Fibre Cable 3.0mm LSZH FTTH

16 Cores G657A Fiber Optical Cable 3.0mm Aque LSZH FTTH Indoor Fiber Cable

MPO Fiber Cable  Assembly, Patch Cable, Datacenter Application





Parameter

Item

Specification

Fiber Counts

16 cores

Fiber Diameter

0.25mm

Cable Jacket

Yellow LSZH

Cable Diameter

3.0±0.1mm

Temperature

-30℃~80℃

Flame retardant

IEC60332-1-2

Crush (N/10cm)

max.500

Bend radius (mm)

Dynamic 20D, Static 10D



16 Core SM MPO Fiber Optical Cable Indoor Fibre Cable 3.0mm LSZH FTTH 0



Many Other Colors Can be Provided

16 Core SM MPO Fiber Optical Cable Indoor Fibre Cable 3.0mm LSZH FTTH 1

16 Core SM MPO Fiber Optical Cable Indoor Fibre Cable 3.0mm LSZH FTTH 2

16 Core SM MPO Fiber Optical Cable Indoor Fibre Cable 3.0mm LSZH FTTH 3



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • For patch cord or pigtail assembly.



Feature

  • Cable using high property aramid yarn, increasing tension property, and fit for long distance application.
  • Different jacket material fit for different environments.



Advantage

  • The cables can be customized, eg. construct, size, color, material, printing, packing and so on., to meet different customers’ different requirement.



Service

  • Different grades products can be provided, eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
