SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER

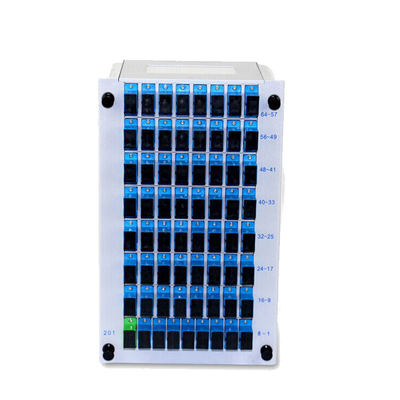

Large Image : SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER

Product Details:

Place of Origin:	CHINA
Brand Name:	DAMU
Certification:	ROSH CE
Model Number:	LGX SCAPC 1X64

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Packaging Details:	blister packing,outside carton
Supply Ability:	20000pcs/day

Contact Now

SC UPC LGX Cassette Inserting Box FTTH PLC Splitter 1x64 VERTICLE 8 LAYER

Description

Fiber:	G675A OR G625D	ARRANGE:	8 Layer X 8 Verticle Type
Wavelength:	1260-1650nm	Cable Dia:	0.9/2.0/3.0mm
CAPACITY:	64CORE	CONNECTOR:	SCUPC
High Light:	G625D FTTH PLC Splitter , G675A FTTH PLC Splitter , 1x64 Fiber Optic Splitter

1x64 SCUPC FTTH PLC Splitter LGX Box Cassette Inserting box 1*64 VERTICLE 8 LAYER

Product Description

SA connector steel tube gpon 1x16 1*16 mini plc splitter

PLC optical splitter is an integrated waveguide optical power distribution device based on quartz substrate. It has the
characteristics of small size, wide operating wavelength range, high reliability and good uniformity. It is especially suitable
for passive optical networks (EPON, BPON, GPON, etc.) connects the central office and the terminal device and implements the splitting of the optical signal.

Specification

Performance Specification: 1xN PLC Splitter
Type	1x2	1x4	1x8	1x16	1x32	1x64
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or Customer Specify
Insertion Loss(P/S Grade)	3.8/4.0	7.2/7.4	10.3/10.7	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity(dB)	≤0.4	≤0.6	≤0.8	≤1.0	≤1.5	≤2.0
PDL(dB)	≤0.1	≤0.1	≤0.1	≤0.2	≤0.25	≤0.3
Return Loss(dB)	≥55	≥55	≥55	≥55	≥55	≥55
Directivity(dB)	≥55	≥55	≥55	≥55	≥55	≥55
Wavelength Dependent Loss(dB)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.5	≤0.5
Fiber Lenght(m)	1m or Specify
Temperature Stability(-5℃~70℃)(dB)	≤0.5
Operating Temperature(℃)	-5~70
Maximum Power Handing(mW)	500

Performance Specification: 2xN PLC Splitter
Type	2x2	2x4	2x8	2x16	2x32	2x64
Operating Wavelength(nm)	1260~1650
Fiber Type	G657A1 or Customer Specify
Insertion Loss(P/S Grade)	3.9/4.2	7.3/7.6	10.5/11.0	14.4/14.6	17.4/17.9	21.0/21.5
Loss Uniformity(dB)	≤0.6	≤1.0	≤1.2	≤1.5	≤1.8	≤2.2
PDL(dB)	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3
Return Loss(dB)	≥55	≥55	≥55	≥55	≥55	≥55
Directivity(dB)	≥55	≥55	≥55	≥55	≥55	≥55
Wavelength Dependent Loss(dB)	≤0.3	≤0.4	≤0.5	≤0.5	≤0.5	≤0.5
Fiber Lenght(m)	1m or Specify
Temperature Stability(-5℃~70℃)(dB)	≤0.5
Operating Temperature(℃)	-5~70
Maximum Power Handing(mW)	500

Features:
1.Low Insertion loss and Low PDL
2.Uniform power splitting
3.High reliability
4.Excellent environmental stability
5.Compact size and various package

Application:

FTTx Systems

Digital, hybrid and AM-Video systems

LAN,WAN and Metro Networks

CATV systems

Other applictaions in fiber optic systems
