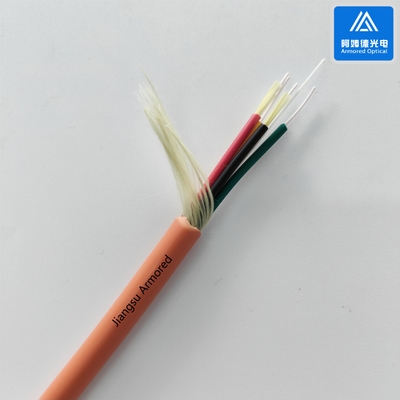

9.0mm Branch 4 Core Fiber Optic Cable Orange LSZH Jacket FTTH Break Out

9.0mm Branch 4 Core Fiber Optic Cable Orange LSZH Jacket FTTH Break Out

  • Highlight

    9.0mm 4 core fiber optic cable

    ,

    4 core fiber optic cable LSZH

    ,

    fiber optic cable 4 core

  • Name
    4 Cores Fiber Cable
  • Fiber Mode
    Single Mode
  • Inner Jacket
    LSZH
  • Inner Jacket Diameter
    2.0mm
  • Inner Jacket Color
    Red, Black, Green, Orange
  • Outer Jacket
    LSZH
  • Color
    Orange
  • Outer Diameter
    9.0mm
  • Flame Rating
    IEC60332-1-2
  • Application
    FTTH, Datacenter
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    4F-B1.3-LSZH-9.0-Orange
  • Minimum Order Quantity
    5000M
  • Price
    Negociation
  • Packaging Details
    Plywood Drum and Pallet. By Sea or Air shipment
  • Delivery Time
    2 Working Weeks
  • Payment Terms
    T/T
  • Supply Ability
    100 KM per Day

9.0mm Branch 4 Core Fiber Optic Cable Orange LSZH Jacket FTTH Break Out

4 cores 9.0mm Branch Fiber Cable Orange LSZH Jacket FTTH Break Out Fiber Optical Cable

4 cores 9.0mm Branch Fiber Cable Orange LSZH Jacket FTTH Break Out Fiber Optical Cable



Branch fiber optical cable are usually used in data centers, communications networks, and FTTH installation. branch cables are primarily used to distribute signals from the backbone cable to multiple terminals or network nodes. For example, in a large building, branch cables can distribute the main cable signal to different floors or departments to ensure that each area has a reliable fiber connection.



Item

Parameter

Fiber Count

4 cores

Inner Jacket

2.0mm  LSZH

Inner Jacket Colors

Red, Black, Green, Orange

Cable Diameter

9.0±0.5mm

Cable Jacket

Orange LSZH

Temperature

-40℃~80℃

Crush (N/10cm)

Long-term 400, short-term 800

Bend radius (mm)

Dynamic 20D, Static 10D



9.0mm Branch 4 Core Fiber Optic Cable Orange LSZH Jacket FTTH Break Out 0







Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • Widely used in FTTH access network
  • Telecommunication Network
  • CCTV Network
  • Data communications Network
  • Local Area Network
  • Optical pig-tails and Patch cord assembly
  • Optical devices and equipment
