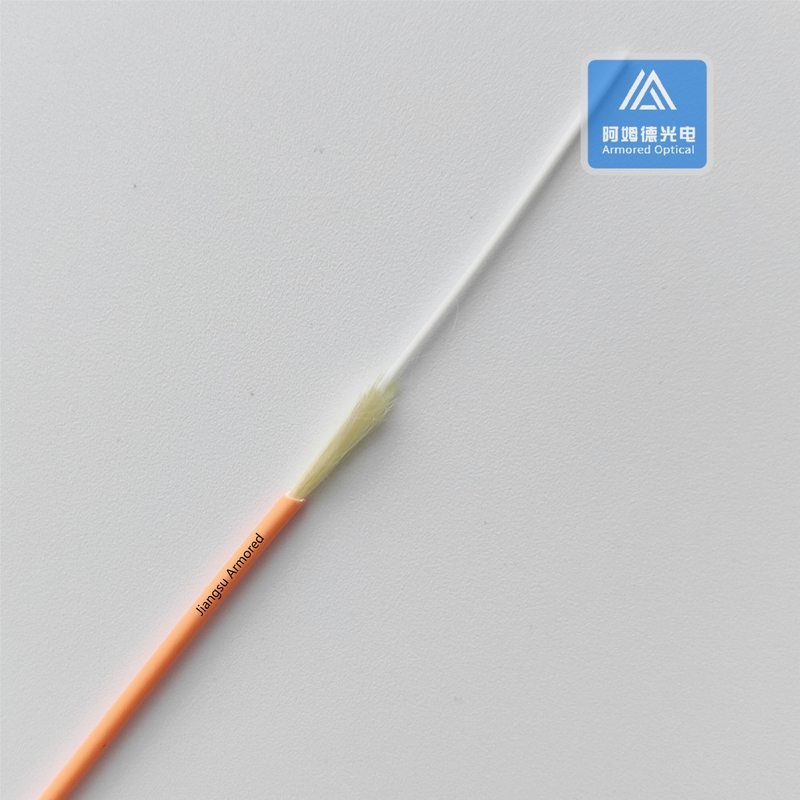

Outdoor Indoor Optical Fiber Cable Simplex Single Mode 3.0mm Orange

Outdoor Indoor Optical Fiber Cable Simplex Single Mode 3.0mm Orange

  • Highlight

    indoor optical fiber cable

    ,

    indoor outdoor fiber optic cable

    ,

    fiber optic cable lszh

  • Name
    Fiber Optical Cable
  • Fiber Counts
    1 Core
  • Fiber Mode
    G657A
  • Fiber Diameter
    0.9mm
  • Fiber Buffer
    PVC Or LSZH
  • Outer Jacket Color
    Orange
  • Outer Jacket
    LSZH
  • Cable OD
    3.0mm
  • Flame Rating
    IEC60332-1-2
  • Application
    FTTH, ODN
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS
  • Model Number
    1F-B6a2-3.0-LSZH-Orange
  • Minimum Order Quantity
    10000M
  • Price
    Negociation
  • Packaging Details
    1000m or 2000m per drum, with or without carton, by Sea or Air
  • Delivery Time
    According to the quantity
  • Payment Terms
    T/T
  • Supply Ability
    100km per day

Outdoor Indoor Optical Fiber Cable Simplex Single Mode 3.0mm Orange

Simplex Single Mode 3.0mm Fiber Optical Cable Orange LSZH FTTH Indoor Fiber Cable

Simplex Single Mode 3.0mm Fiber Optical Cable Orange LSZH FTTH Indoor Fiber Cable

Simplex Single Mode Fiber Optical Cable





Parameter

Item

Specification

Fiber count

1 core 0.6mm or 0.9mm tight buffer

Buffer material

PVC or  LSZH

Cable jacket

Orange  LSZH

Cable diameter

3.0±0.1mm

Temperature

-20℃~70℃

Flame retardant

IEC60332-1-2

Crush (N/10cm)

max.500

Bend radius (mm)

Dynamic 20D, Static 10D



Outdoor Indoor Optical Fiber Cable Simplex Single Mode 3.0mm Orange 0



Many Other Colors Can be Provided

Outdoor Indoor Optical Fiber Cable Simplex Single Mode 3.0mm Orange 1





Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • For patch cord or pigtail assembly.



Feature

  • Cable using high property aramid yarn, increasing tension property, and fit for long distance application.
  • Different jacket material fit for different environments.
  • UV-resistant



Advantage

  • The cables can be customized, eg. construct, size, color, material, printing, packing and so on., to meet different customers’ different requirement.



Service

  • Different grades products can be provided, eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
