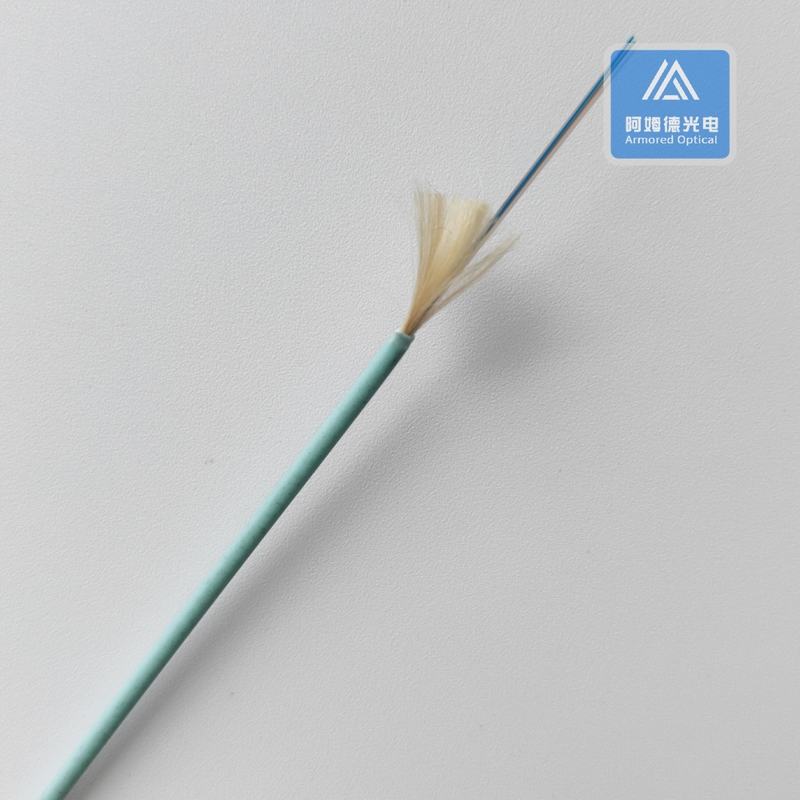

6 Core OM4 Fiber Optical Cable Indoor Fibre Cable Aque LSZH FTTH 2.0mm

6 Core OM4 Fiber Optical Cable Indoor Fibre Cable Aque LSZH FTTH 2.0mm

  • Highlight

    indoor fibre cable

    ,

    OM4 Fiber Optical Cable

    ,

    Fiber Optical Cable 2.0mm

  • Name
    Fiber Optical Cable
  • Fiber Counts
    6 Core
  • Fiber Mode
    OM4
  • Fiber Diameter
    0.25mm
  • Fiber Color
    Blue, Orange, Green, Brown, Grey, White
  • Outer Jacket Color
    Aque
  • Outer Jacket
    LSZH
  • Cable OD
    2.0mm
  • Flame Rating
    IEC60332-1-2
  • Application
    FTTH, FTTB
  • Place of Origin
    CHINA
  • Brand Name
    JIANGSU ARMORED
  • Certification
    ROHS,
  • Model Number
    6F-OM3-2.0-LSZH-Aque
  • Minimum Order Quantity
    10000M
  • Price
    Negociation
  • Packaging Details
    1000m or 2000m per drum, with or without carton
  • Delivery Time
    According to the quantity
  • Payment Terms
    T/T
  • Supply Ability
    50km per day

6 Core OM4 Fiber Optical Cable Indoor Fibre Cable Aque LSZH FTTH 2.0mm

6 Cores OM4 Fiber Optical Cable 2.0mm Aque LSZH FTTH Indoor Fiber Cable

6 Cores OM4 Fiber Optical Cable 2.0mm Aque LSZH FTTH Indoor Fiber Cable





Parameter

Item

Specification

Fiber Counts

6 cores

Fiber Diameter

0.25mm

Cable Jacket

Aque LSZH

Cable Diameter

2.0±0.1mm

Temperature

-20℃~70℃

Flame retardant

IEC60332-1-2

Crush (N/10cm)

max.500

Bend radius (mm)

Dynamic 20D, Static 10D



6 Core OM4 Fiber Optical Cable Indoor Fibre Cable Aque LSZH FTTH 2.0mm 0



Many Other Colors Can be Provided

6 Core OM4 Fiber Optical Cable Indoor Fibre Cable Aque LSZH FTTH 2.0mm 1



Applications

  • Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
  • Used in communications in data center, during ODF with armored patch cord and pigtail
  • Used in the open field, connections between optical equipment.
  • For patch cord or pigtail assembly.



Feature

  • Cable using high property aramid yarn, increasing tension property, and fit for long distance application.
  • Different jacket material fit for different environments.
  • UV-resistant



Advantage

  • The cables can be customized, eg. construct, size, color, material, printing, packing and so on., to meet different customers’ different requirement.



Service

  • Different grades products can be provided, eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
