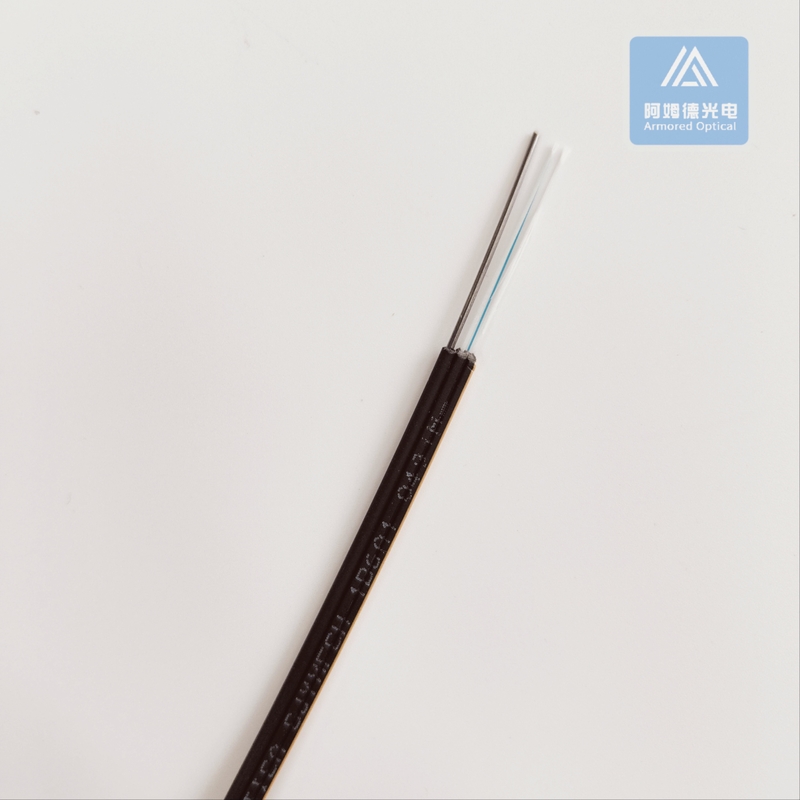

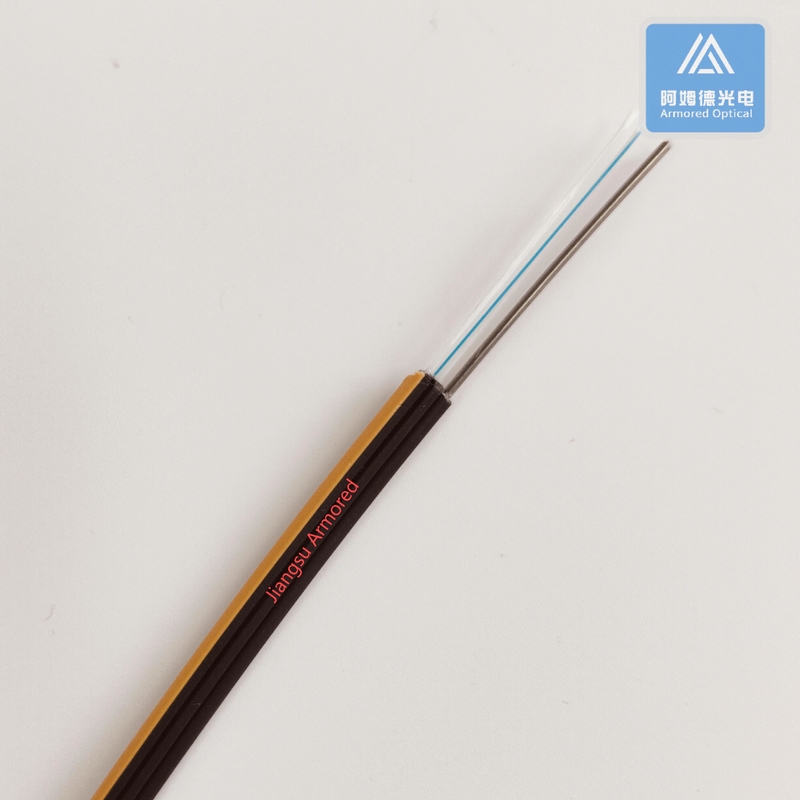

Simplex SM Self Supporting Drop Cable 5.0x2.0mm Black LSZH With Orange Strip
-
Highlight
Black LSZH Self-supporting Drop Cable
,Orange Strip Self-supporting Drop Cable
,Simplex SM Self-supporting Drop Cable
-
NameFiber Drop Cable
-
Fiber Counts1 Core
-
Fiber ModeG657A
-
Fiber Diameter0.25mm
-
Fiber ColorBlue
-
FRP OD0.5mm
-
Supporting WireStainless Steel Wire 1.0mm
-
Outer Jacket ColorBlack With Orange Strip
-
Outer JacketLSZH
-
Cable OD5.0x2.0mm
-
Place of OriginCHINA
-
Brand NameJIANGSU ARMORED
-
CertificationROHS
-
Model Number1F-B6a2-5.0x2.0-LSZH-Black
-
Minimum Order Quantity10000M
-
PriceNegociation
-
Packaging Details1000m or 2000m per drum, with or without carton
-
Delivery TimeAccording to the quantity
-
Payment TermsT/T
-
Supply Ability80km per day
Simplex SM Self Supporting Drop Cable 5.0x2.0mm Black LSZH With Orange Strip
Simplex SM Self-supporting Drop Cable 5.0x2.0mm Black LSZH with Orange Strip Indoor and Outerdoor Fiber Optic Cable
Fiber Patch Cable, Assembly Cable, FTTH,
Parameter
|
Item |
Specification |
|
Fiber Counts |
1 cores |
|
Fiber Diameter |
0.25mm |
|
Cable Jacket |
Black LSZH with Orange Strip. |
|
Cable Diameter |
5.0x 2.0 (±0.1mm) |
|
Temperature |
-20℃~70℃ |
|
Flame retardant |
IEC60332-1-2 or others |
|
Crush (N/10cm) |
max.500 |
|
Bend radius (mm) |
Dynamic 20D, Static 10D |
Feature
- Cable using high property aramid yarn, increasing tension property, and fit for long distance application.
- Different jacket material fit for different environments.
- UV-resistant
Applications
- Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
- Used in communications in data center, during ODF with armored patch cord and pigtail
- Used in the open field, connections between optical equipment.
- For patch cord or pigtail assembly.
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
