Product Details:
|
Application: | Polishing UPC And Angled Connector Of SC / FC / E2000 / ST / MU And LC | Weight: | About 20kgs |
---|---|---|---|

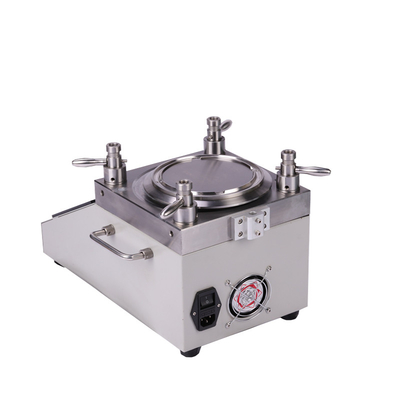

Product Name: | High Quality Central Pressurized Fiber Optic Polishing Machine | Dimension: | 240mm * 350mm *470mm |
High Light: | 120rpm Fiber Optic Connector Polishing Machine,E2000 Fiber Optic Connector Polishing Machine,E2000 Connector fiber optic polisher |
Main feature:
1. processing all kinds of standard optical fiber connector: FC, SC, ST, LC,MU, MT-RJ, E2000.
2. grinding processing of plastic optical fiber, optical fiber and other types of medical products.
3. central pressure, simple operation. Unloading and replacement, convenient clamp grinding sheet.
4. the processing quality is stable, low repair rate.
5. high production efficiency (countable parallel production line) .
6. consumables, low cost saving grinding .

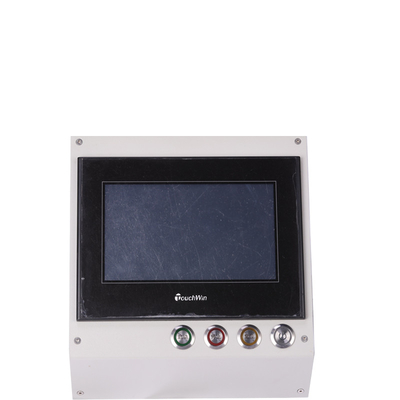

7. grinding times digital display control, can adjust the grinding speed (0-120rpm) .
Machine size : | 240mm*350mm*470mm |
Net weight:: | 20kg |
Polish disc: | 110mm |
Polish speed: | 0-120rpm |
Power: | AC110/220 5060Hz |
Insert loss | 0.2-0.3dB |
Return loss | 50-60dB |
Offset | 50um |
